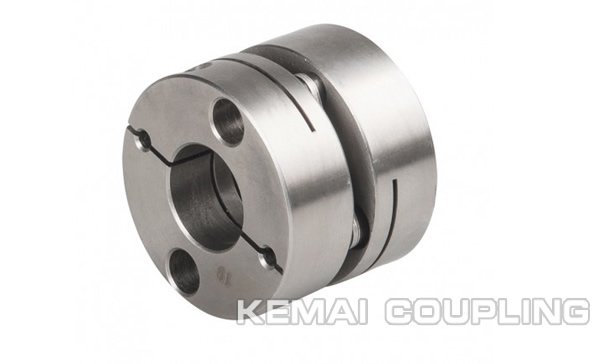

S1C SUS Single Disc Coupling

S1C SUS Single Disc Coupling, flexible shaft couplings OD:26~104mm; d1,d2:3~40mm; L:27~99mm; Rated torque:2~100N.M;

Bushings Material:Import SUS;
Flexible colloidal material:SUS;
Surface treatment: Polishing;
Country of Origin：CHINA

Model Explanation:

Stainless steel single disc coupling model：S1C

S1C 56X45-16X18
56: Outside diameter;
45: Total length;
16: d1 bore diameter;
18: d2 bore diameter;

S1C SUS Single Disc Coupling Dimensions And Data:

Model	d1，d2，Bore mm	ΦD	L	LF	S	Φd4	F	C	M	Wrench Torque(N.M)
S1C26x26	4,5,6, 6.35 ,7,8,9, 9.525 ,10,11,12, 12.7 ,14	Φ26	26	11.65	2.7	Φ10.5	3.9	8.58	2-M3x12	2.5
S1C34x32.5	6, 6.35 ,7,8,9, 9.525 ,10,11,12, 12.7 ,14,15	Φ34	32.5	14.25	3.9	Φ14.5	4.85	11.25	2-M4x14	3.5
S1C39x34.5	8,9, 9.525 ,10,11,12, 12.7 ,14,15,16,18,19	Φ39	34.5	15.5	3.6	Φ17	5	13.1	2-M4x18	3.5
S1C44x34.5	8,9, 9.525 ,10,11,12, 12.7 ,14,15,16,18,19,20,22	Φ44	34.5	15.5	3.6	Φ20.5	5	15.5	2-M4x20	3.5
S1C50x41.5	12,14,15,16,18,19,20,22,24,25	Φ50	41.5	18	5.5	Φ22.5	5.5	17.3	2-M5x16	8
S1C56x45	12,14,15,16,18,19,20,22,24,25	Φ56	45	19.75	5.5	Φ26.5	6.4	19.5	2-M5x25	8
S1C68x54	15,16,19,20,22,24,25,28,30,35	Φ68	54	23.35	5.8	Φ31	7.7	23.5	2-M6x35	15
S1C82x69	22,24,,28,30,35,38,40	Φ82	69	30	8.7	Φ41	9.7	28	2-M8x35	30

---
