Nylon Sleeve Gear Coupling

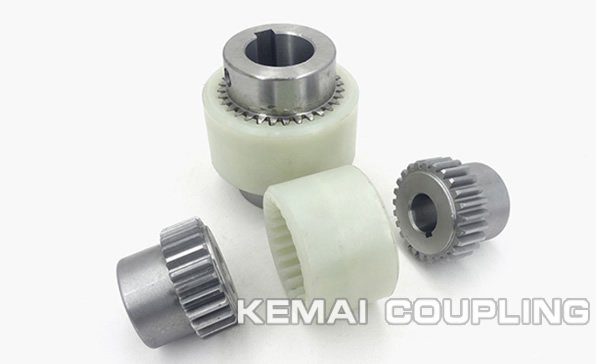

Nylon sleeve gear coupling is a flexible gear coupling. We are gear coupling manufacturers in China. Model have NL1 NL2 NL3 NL4 NL5 NL6 NL7 NL8 NL9 NL10.

Nylon gear flexible coupling is the latest product.It has been using by abroad. Applies to flexible drive shaft, allowing larger axial radial displacement and angular displacement.
Shaft hole and keyway according to national standard GB3852-83.
Working temperature is -20℃~+70℃.

Nylon gear coupling marking method

For example:NL4 gear flexible coupling
Driving shaft : d1=38mm L1=80mm; driven axle: d2=30mm L2=50mm;
Denotes that: 38X80 / 30X50

Nylon Sleeve Gear Coupling Size Chart

Model	Nominal torqueTn (N.M)	Speed (r/min)	bore diameter d1 d2	bore length L1 L2	L	D	D1/D2	E	L3	Weight (Kg )
NL1	40	6000	6 8 10 12 14	16 2025 32	37 45 55 69	40	26	4	34	0.85
NL2	100	6000	10 12 14 22 16 18 20 24	25 3242 52	57 71 91 111	42	36	4	40	1.7
NL3	160	6000	20 22 24 25 28	52 62	113 133	66	44	4	46	2.6
NL4	250	6000	28 30 32 35 38	62 82	129 169	83	58	4	48	3.6
NL5	315	5000	32 35 38 40 42	82 112	169 229	93	68	4	50	5.5
NL6	400	5000	40 42 45 48	82 112	230	100	68	4	52	6.8
NL7	630	3600	45 48 50 55	82 112	229	115	80	4	60	9.8
NL8	1250	3600	48 50 55 60 63 65	112 142	229 289	140	96	4	72	26.5
NL9	2000	2000	60 63 65 70 71 75 80	142 172	295 351	175	124	6	93	37.6
NL10	3150	1800	70 71 75 80	142 172 212	292 352 432	220	157	8	110	55
